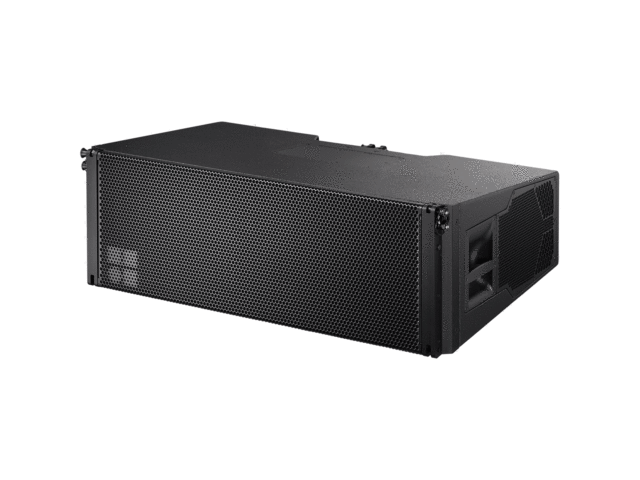

d&b KSL8
The KSL8 line array module produces an 80° constant directivity dispersion pattern in the horizontal plane over the entire operating bandwidth. The KSL8 houses two 10″ neodymium forward facing LF drivers and two side firing 8″ neodymium LF drivers. A coaxial mid-high section contains an MF horn with an 8″ driver and two 1.4″ exit, 3″ voice coil HF compression drivers mounted to a dedicated wave shaping device. SL-Series flying hardware comes with a patented workflow with integrated tension and compression rigging modes, allowing splay angles between cabinets from 0° to 10° in 1° increments.
Technical details | |
---|---|
Frequency Response (-5 db standard) | 54 Hz - 18 kHz |
Max. Sound Pressure (1m, free field) | SPLmax 145 db |
Nominal dispersion angle (h x v) | 80 ° |
Dimensions (H X W X D) | 330 x 1000 x 597 mm |
Weight | 58 kg |
To hire call 01189 772 020
